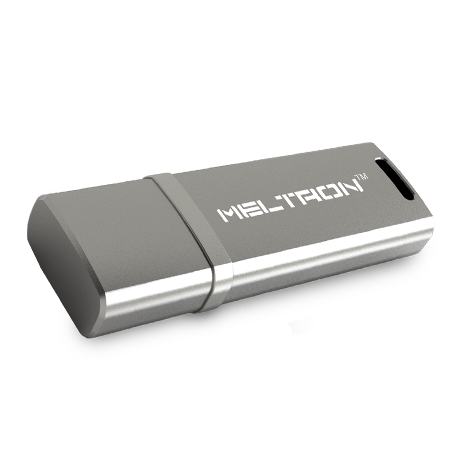

Industrial Robust USB Drive

Specification

Model No. U-311
Status Active
NAND Type 3D TLC / 3D pSLC
Capacity 3D TLC: 32GB ~ 256GB,
3D pSLC: 4GB ~ 128GB
Interface USB 3.2 (backward compatible to USB2.0 & USB1.1)
Form Factor USB flash drive
Connector USB Type A Plug
Sequential
Read/Write ( up to )		 220/125 MB/s
Operating Voltage 5.0 V ± 5%
ECC Engine Low-Density Parity-Check (LDPC) Code
Shocks 1500G / 0.5ms
Vibration 80Hz ~ 2000Hz/20G
MTBF 2,000,000 hours
Dimension
(LxWxH/mm)		 18.6 x 55.8 x 9.6
Op. Temperature 0°C~70°C /-40℃~85℃
Storage Temp -40°C ~ 85°C
Storage Humidity 0% ~ 95%
Features
  • High IOPS
  • Metal plug protector safeguards from shock, dust, and water
  • Supports S.M.A.R.T (Self-defined) to monitor Erase Count for lifetime evaluation
  • Wear leveling function
  • USB3.2 interface deliveries fast data transmission and complies with USB1.0/2.0/3.2
  • Advanced Flash Management: ECC, Static and Dynamic Wear Leveling, Bad Block Management
  • Driver-less in Windows / Mac OS / Linux
  • RoHS Compliant
Application
